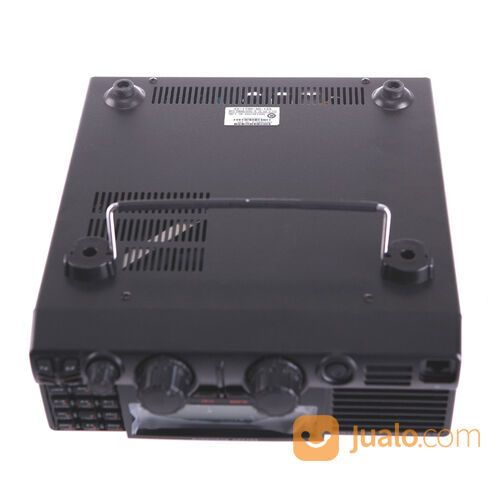

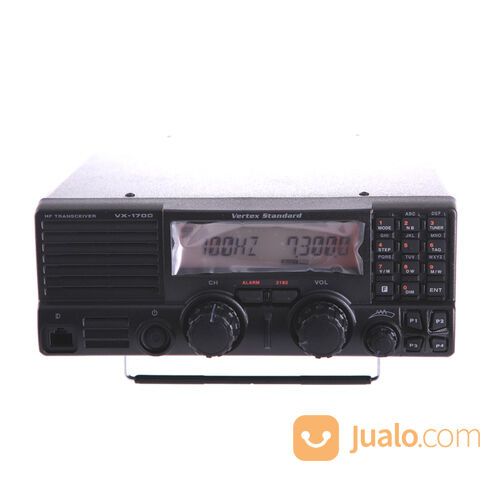

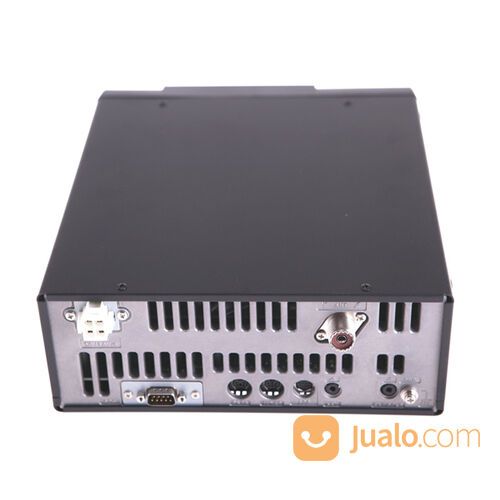

Vertex Standard VX-1700 Single Side Band (SSB) Multi-Mode HF Radio
============================================================
Designed to operate both as a mobile radio or base station for long-haul land mobile communication, the multi-purpose 125-Watt VX-1700 is the ideal choice for any applications. Operating modes include LSB/USB (J3E and J2B), AM (A3E) and CW (A1A).
Features
• Long Haul Communications
• Large Channel Capacity
• Automatic Link Establishment (ALE) Option
• Flexible Calling Options
• Dual Watch Operation
============================================================
Specifications
GENERAL
Frequency Range:
- RX : 30 kHz – 30.0000 MHz
- TX : 1.600 – 30.0000 MHz
Number of Channels : 200
Emission Type : A1A(CW); J3E(LSB/USB); A3E(AM); J2B (USB/LSB)
Power Supply Voltage : DC 13.8 V ±15%, negative ground
Frequency Synthesizer Steps : 10 Hz, 100 Hz, 1 kHz
Frequency Stability : ± 1 ppm (-10ºC to +55ºC) TYP
Current Consumption :
RX (no signal) : 1.0 A
RX : 1.5 A
TX : 22 A (125 W output)
STBY : 25 mA
Operating Temperature Range : -10ºC to +55ºC
Antenna Impedance : 50 Ohms
Dimension (H x W x D) : 99 x 241 x 285 mm
Weight (Approx.) : 4.3 kg
RECEIVER
Intermediate Frequency : 1st: 45.274 MHz, 2nd: 24 MHz
Sensitivity (A1A/J2B/J3E/A3E: S/N 10 dB) :
- 0.5 – 1.6 MHz: 1.41 μV (A1A/J2B/J3E); 8 μV (A3E)
- 1.6 – 30 MHz: 0.16 μV (A1A/J2B/J3E); 1 μV (A3E)
Squelch Sensitivity (A1A/J2B/J3E) :
- 0.5 – 1.6 MHz: 2.5 μV
- 1.6 – 30 MHz: 2 μV
IF and Image Rejection : Better than 80 dB
Selectivity :
- A1A(W), J2B(W), J3E: > 2.2 kHz @ -6 dB; < 4.5 kHz @ -60 dB
- A1A(N), J2B(N): > 500 Hz @ -6 dB; < 2.0 kHz @ -60 dB
- A3E: > 6 kHz @ -6 dB; < 20 kHz @ -60 dB
Audio Output : 2.2 W into 8 Ohms @ 10% THD
Audio Impedance : 4 – 16 Ohms (8 Ohms Nominal)
Conducted Radiation : Less than 4000 μ μW
TRANSMITTER
Output Power :
- 125 Watts (A1A, J2B, J3E @ 1.6000 – 3.9999 MHz)*
- 100 Watts (A1A, J2B, J3E @ 4.0000 – 30.000 MHz)
- 31 Watts AM Carrier (A3E @ 1.6000 – 3.9999 MHz)
- 25 Watts AM Carrier (A3E @ 4.0000 – 30.000 MHz)
Duty Cycle : RX: TX = 4 min.: 1 min.
Modulation :
- J3E: PSN type modulator
- A3E: Low-level (early stage)
Spurious Radiation : Better than 56 dB (Harmonics)
J3E Carrier Suppression : Better than 50 dB below peak output
Undesired Sideband Suppression : Better than 60 dB below peak output
Spurious Emissions : 56 dB
Audio Response (J3E) : Not more than 6 dB from 400 Hz – 2500 Hz
Occupied Bandwidth :
- A1A: less than 0.5 kHz
- J3E: less than 3.0 kHz
- A3E: less than 6.0 kHz
Microphone Impedance : 200 – 10 k Ohms, (600 Ohms Nominal)
* 100 W when using FC-30
===========================================================
