Deskripsi

Repeater Motorola Mototrbo SLR 5300 bisa beroperasi sebagai repeater analog (konvensional atau MPT 1327), atau sebagai mode campuran analog / digital repeater saat Anda beralih dari sistem analog lama.

SLR 5300 REPEATER

GENERAL SPECIFICATIONS

VHF UHF 300 MHz
Frequency Range 136-174 MHz 400-470 MHz 350-400 MHz
Channel Capacity 64
RF Output Power 1-50 W
Dimensions (H x W x D) 1.75 x 19 x 14.6 in (44 x 483 x 370 mm)
Weight 19 lbs (8.6 kg)
Input Voltage (AC) 100-240 Vac, 47-63 Hz
Current (standby), 110 / 240 V 0.18 / 0.25 A
Current (transmitting), 110 / 240 V 1.5 / 0.9 A
Input Voltage (DC) 11.0-14.4 Vdc
Current (standby) 0.7 A
Current (transmitting) 9.5 A
Operating Temperature Range -22 to +140 °F (-30 to +60 °C)
Humidity RH of 95%, non-condensing at 50 °C (122 °F)
Max Duty Cycle 100%
FCC Description ABZ99FT3094 ABZ99FT4096 –
IC Description 109AB-99FT3094 109AB-99FT4096 –
Digital Vocoder Type AMBE+2™
Battery Charger Capacity 12 V, 3 A
Connectivity Tx (N female), Rx (BNC female), USB A receptacle, 2x Ethernet
Supported System Types Digital Conventional, IP Site Connect, Capacity Plus, Linked Capacity Plus, Connect Plus
Analog Conventional, MPT 1327
RECEIVER

Frequency Range 136-174 MHz 400-470 MHz 350-400 MHz
Channel Spacing 12.5 / 20 / 25* kHz
Frequency Stability (-30°C, +60°C, +25°C Ref) +/- 0.5 ppm
Sensitivity, 12dB SINAD 0.22 uV
Sensitivity, 5% BER 0.22 uV
Selectivity (TIA603D), 12.5/20/25* kHz 55 / 83 / 83 dB 55 / 80 / 80 dB 55 / 80 / 80 dB
Selectivity (TIA603), 12.5/20/25* kHz 68 / 83 / 83 dB 68 / 80 / 80 dB 68 / 80 / 80 dB
Selectivity (ETSI), 12.5/20/25* kHz 63 / 70 / 70 dB
Intermodulation Rejection (TIA603D/ETSI) 82 / 73 dB
Spurious Rejection (TIA603D/ETSI) 95 / 90 dB
Audio Distortion < 1%
Hum and Noise, 12.5/20/25* kHz -45 / -45 / -50 dB
TRANSMITTER

Frequency Range 136-174 MHz 400-470 MHz 350-400 MHz
RF Output Power 1-50 W
Max Duty Cycle 100%
Channel Spacing 12.5 / 20 / 25* kHz
Frequency Stability (-30°C, +60°C, +25°C Ref) +/- 0.5 ppm
Intermodulation Attenuation 40 dB
Adjacent Channel Power (TIA603D), 25*/ 12.5 kHz 62 / 78 / 78 dB
Adjacent Channel Power (ETSI), 25* / 12.5 kHz 62 / 78 / 78 dB
Conducted Spurious Emissions -36 dBm < 1 GHz, -30 dBm > 1 GHz
Modulation Fidelity (4FSK) FSK Error 5%, FSK Magnitude 1%
Audio Response TIA603D
Audio Distortion < 1%
Hum and Noise, 12.5/20/25* kHz -45 / -45 / -50 dB
Rated System Deviation, 12.5/20/25* kHz ±2.5 / ±4.0 / ±5.0 kHz

Lihat selengkapnya

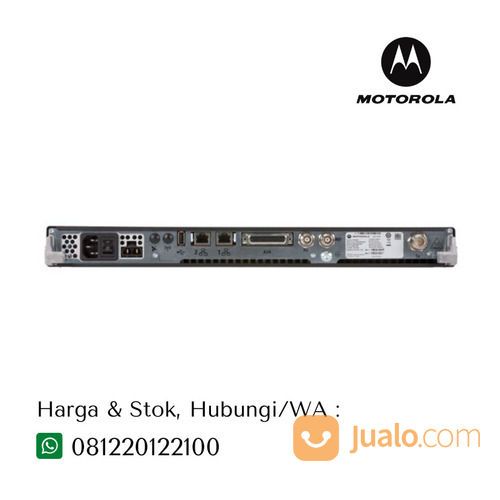

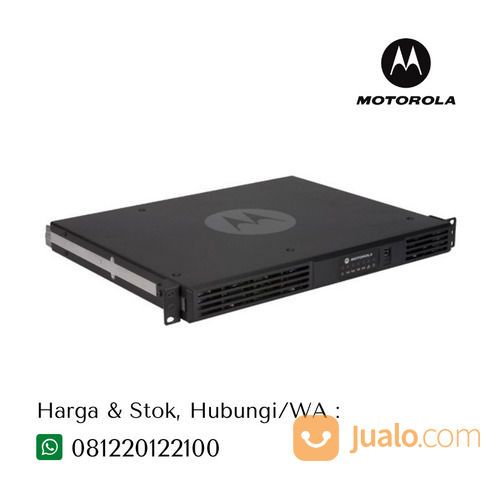

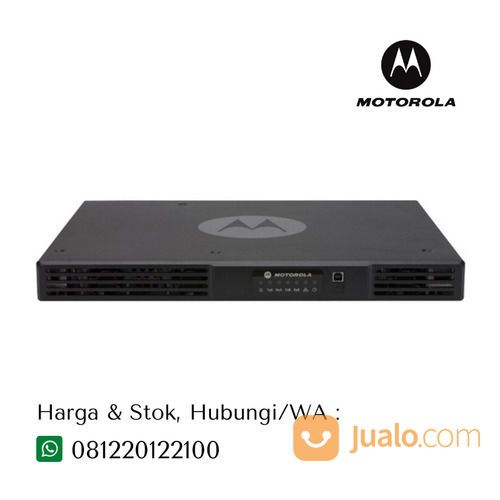

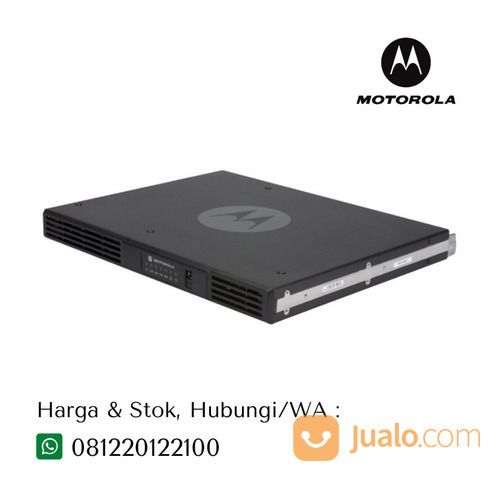

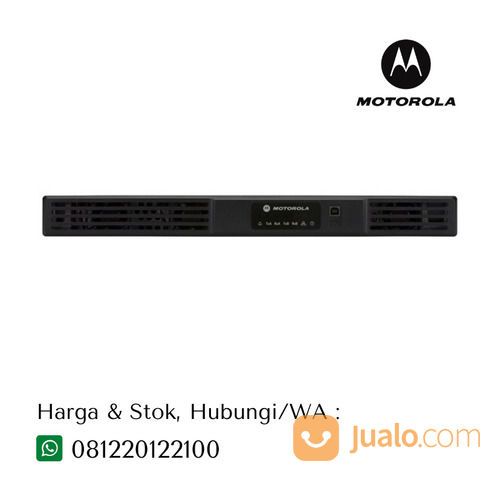

Repeater Motorola SLR 5300 UHF/VHF

Rp 38.500.000
