What's Orange PI PC?
Its an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image, as well as the banana pi Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM
What can I do with Orange Pi PC?
Build
A computer
A wireless server
Games
Music and sounds
HD video
A speaker
Android
Scratch
Pretty much anything else, because Orange Pi PC is open source
Who's it for?
Orange Pi PC is for anyone who wants to start creating with technology not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
CPU
H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU
Mali400MP2 GPU @600MHz
Supports OpenGL ES 2.0
Memory(SDRAM)
1GB DDR3 (shared with GPU)
OnboardStorage
TF card (Max. 64GB) / MMC card slot
OnboardNetwork
10/100M Ethernet RJ45
VideoInput
A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to */
AudioInput
MIC
VideoOutputs
Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function
Integrated CVBS
Supports simultaneous output of HDMI and CVBS
AudioOutput
3.5 mm Jack and HDMI
PowerSource
DC input can supply power, but USB OTG input dont supply power
USB2.0Ports
Three USB 2.0 HOST, one USB 2.0 OTG
Buttons
PowerButton(SW4)
Low-level peripherals
40 Pins with Raspberry Pi B+
GPIO(1x3)pin
UART, ground.
LED
Power led & Status led
Key
IR input, POWER
Supported OS
Android Ubuntu, Debian, Rasberry Pi Image

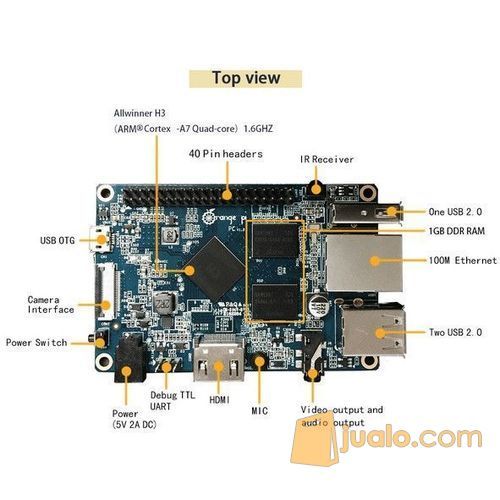

Interfacedefinition
Productsize
85mm55mm
Weight
38g
Orange Pi is a trademark of the Shenzhen Xunlong Softw
Orange Pi PC Open Source Mini PC
Rp 404.300
