P25 Conventional and Trunking
Smallest and Lightest of Its Class

P25 Phase 1 Conventional, Trunking* and Phase 2 Trunking* Capable
DHS P25 CAP Certified (TIA-102) Compliant for Multiple Vendor Interoperability
Optional FIPS Compliant AES Encryption Unit*
P25 Voting Scan* (P25 Conventional Mode)
Up to 1024 Channel Capacity with 128 Zones
IP68 Waterproof Protection (1 m depth/1 hour)
High Visibility and Readability with a Color LCD
Icom's custom high power handling capacity speaker for 1300 mW of powerful audio
Built-in Bluetooth®, Voice Recording and P25 Packet Data (GPS)* Functions
Enhanced Dual-Rate AMBE+2™ Vocoder

General

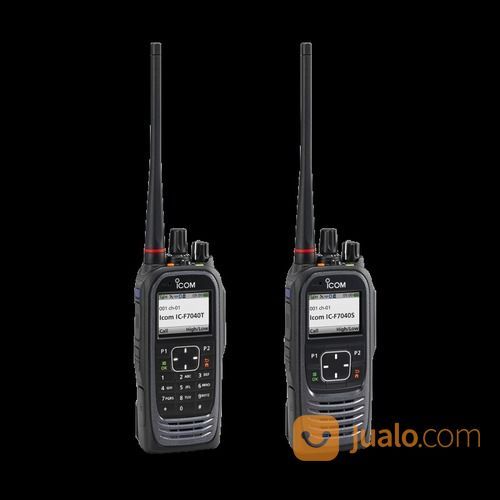

IC-F7040T/S
Frequency coverage
(* Depends on the transceiver version) USA 769–775 MHz (for RX/TX); 799–805 MHz( for TX only),
851–869 MHz (for RX/TX); 806–824 MHz(for TX only)
EXP 764–776 MHz ( for RX/TX); 794–806 (for TX only),
851–870 (for RX/TX); 806–825 (for TX only)
Number of channels 1024 channels /128 zones
Type of emission
(* Depends on the transceiver version) 16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E,
8K10F1E/F1D, 8K10F1W
Power supply requirement 7.5 V DC nominal
Current drain (approximate) Tx 1.6 A
Rx 620 mA (Max. audio w/Internal SP)
220 mA (Standby)
Antenna impedance 50 Ω
Operating temperature range −30 °C to +60 °C;
−22 °F to +140 °F
(Radio specifications)
Dimensions
(W × H × D, Projections not included) 53.6 × 123.5 × 38.2 mm;
2.1 × 4.9 × 1.5 in
(With BP-284)
Weight (approximate) 345 g, 12.2 oz
(with BP-284, MB-133, FA-S100U)
Transmitter

IC-F7040T/S
Output power (Hi) 3 W
Maximum frequency deviation ±5.0 kHz (25 kHz),
±4.0 kHz (20 kHz),
±2.5 kHz (12.5 kHz)
Frequency stability ±1.0 ppm
Spurious emissions 70 dB minimum
FM hum and noise 55 dB typical
Audio harmonic distortion 1.5% typical (AF 1kHz 40% deviation)
FSK error 1% typical
Receiver

IC-F7040T/S
Sensitivity Analog
(12 dB SINAD) 0.25 μV typical
Digital
(5% BER) 0.25 μV typical
Adjacent channel selectivity

Analog (wide / middle / Narrow)
75 / 75 / 53 dB typical (TIA-603B)
Digital 60 dB typical (TIA-102)
Spurious response rejection 70 dB minimum
Intermodulation rejection Analog 70 dB typical
Digital 70 dB typical
Audio output power Internal SP 1300 mW typical (at 5% distortion with 8 Ω load)
External SP 1000 mW typical (at 5% distortion with 8 Ω load)
