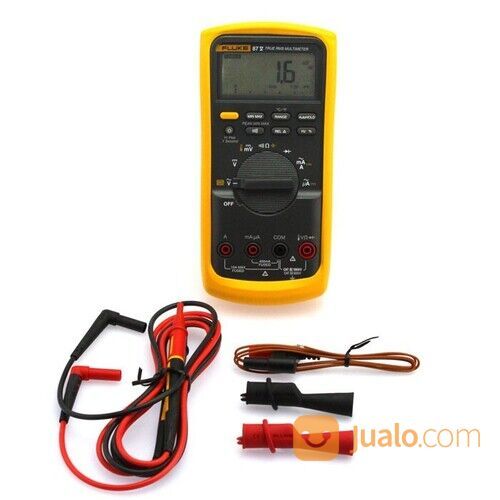

Fluke 87V MAX True-RMS Digital Multimeter
============================================================
Features
• Withstands drops up to 4-meters (13 feet) with industrial strength casing and holster
• Waterproof, dustproof IP67 case for the most extreme work sites
• Premium TL175 TwistGuard™ test leads
• Double the battery life of the 87V (up to 800 hours); backlit keys for dark environments
============================================================
Specifications
DC Voltage :
- Range : 0.1 mV to 1000 V
- Accuracy : ±(0.05% + 1)
- Maximum resolution : 0.1 mV
AC Voltage :
- Range : 0.1 mV to 1000 V
- Accuracy : ±(0.7% + 4) true-rms
- AC bandwidth : 20 kHz with low pass filter; 3 dB @ 1 kHz
- Maximum resolution : 0.1 mV
DC Current :
- Range : 0.1 μA to 10 A (20 A for 30 seconds maximum)
- Amps accuracy : ±(0.2% + 2)
- Maximum resolution : 0.1 µA
AC Current :
- Range : 0.1 μA to 10 A (20 A for 30 seconds maximum)
- Amps accuracy : ±(1.0% + 2) true-rms
- Maximum resolution : 0.1 µA
Resistance :
- Range : 0.1 Ω to 50 MΩ
- Accuracy : ±(0.2% + 1)
- Maximum resolution : 0.1 Ω
Capacitance :
- Range : 0.01 nF to 9999 μF
- Accuracy : ±(1% + 2)
- Maximum resolution : 0.01 nF
Frequency :
- Range : 0.5 Hz to 199.99 kHz
- Accuracy : ±(0.005% + 1)
- Maximum resolution : 0.01 Hz
Duty cycle :
- Maximum duty cycle : 99.9%
- Accuracy : ±(0.2% per kHz + 0.1%)
- Maximum resolution : 0.1%
Temperature measurement range : –200.0 °C to 1090 °C. excluding probe
80 BK temperature probe : –40.0 °C to 260 °C, ± 2.2 °C or 2% whichever is greater
Conductance :
- Maximum conductance : 60.00 nS
- Accuracy : ±(1.0% + 10)
- Maximum resolution : 0.01 nS
Diode test :
- Range : 2 V
- Resolution : 0.001V
- Accuracy : ±(1% + 1)
Diagnostics and data storage :
- Peak Min/Max : 250 μS
- Min/Max/Avg : Yes
- Reading hold/Auto (Touch) Hold : Yes
- Relative reference : Yes
Display :
- Digital : 6000 counts updates 4/second. 19,999 counts in high–resolution mode
- Analog bar graph : 32 segments, updates 40/second
- Backlight : Two level
Low pass filter (VFD measurements) : Yes
Input Alert™ : Yes
Safety Specifications
Safety rating : IEC61010-1: Pollution Degree 2. IEC 61010-2-033: CAT IV 600 V, CAT III 1000 V
Agency approvals : CE, CSA
Mechanical and General Specifications
IP rating : IEC 60529: IP67
Power : Three AA batteries. 800 hours typical, without backlight
Size : 6.0 x 10.1 x 21.5 cm (with holster)
Weight : 698.5 g (with holster)
Environmental Specifications
Operating temperature : -15 °C to 55 °C, to -40 °C for 20 minutes when taken from 20 °C
Storage temperature : -40 °C to + 60 °C
Humidity (without condensation) : 0% – 90% (0 °C – 35 °C), 0% – 70% (35 °C – 55 °C)
Operating altitude : 2000 m
Included : Fluke 325 True-RMS Clamp Meter, TL75 Test Leads, Type K Thermocouple, Two AAA Batteries (Installed), Soft Case
===========================================================
