Specifications
Mobile Repeater GSM900 DCS1800Mhz:
1) With CE approval
2) High quality high performance
3) Single & Dual band models
1. Product Information
1) High system gains
2) Full duplex and double-end design, external power supply, andconvenient installation
3) ALC technology with auto-steady function adopted
4) Provide power indication and uplink and downlink indications
5) With the amplified linear power, the intermodulation and spuriousness are suppressed

Frequency range Uplink : 890~ 915MHZ 1710~ 1785MHZ
Downlink: 935~ 960MHZ 1805~ 1880MHZ
Gain ( dB) Uplink Gp= 60
Downlink Gp= 65
Export power ( Po) = 27dBm
Pass band ripple = 3dB

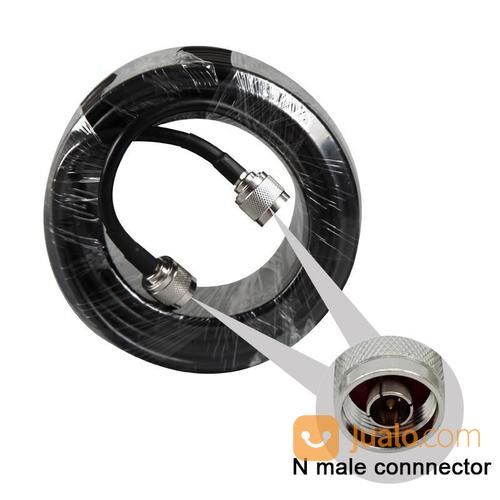

I/ O impedance 50O/ N connector
Noise figure = 4dB
Transmission Delay = 0.5 s
Ambient temperature -10 C~ 60 C
Power supply AC110~ 220V 45~ 55Hz
Size 220 x180 x 20 mm
Reliability To the GB6993-86 standard
Electromagnetic
compatibility To the ETS300 694-4 standard
Function a) Power supply LED denote
b) Export power LED denote
coverage area 1000 m2
